redesignAnswer: The icons don’t work for the 1 in 12 men who are colorblind

Earlier, I asked:

These are the icons for Software Update Microsoft System Center Configuration Manager 2007, fromhttp://technet.microsoft.com/en-us/library/bb632404.aspx

They are meant to show the states for Normal, Superseded, Expired, Invalid, and Meta-data only software updates.

What is the worst flaw in these icons?



IC17338-2 IC89827IC152799 IC566283IC111350



And to look at them, you might say “nothing” or, “they’re all using arrows.”

But for the 1 in 12 men in the world and 1 in 200 women that suffer from color blindness, these icons look pretty similar, making it hard to discern the meaning.

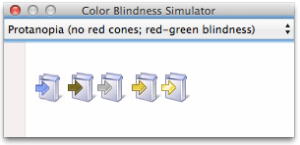

Here’s what it looks like using the color-blindness simulator Sim Daltonism.
daltonism











Green and Yellow are hopelessly lost. Red and Gray, Red and Green aren’t fantastic, either.

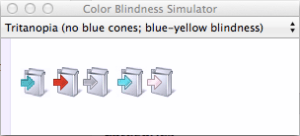

Changing the type of color blindness simulation shows that it’s not a simple problem:

daltonism2

Here, Blue and Green are nearly the same.



Microsoft attempted to solve this in 2012 by using different badges on the icons instead of arrows for everything.

IC17338-2 IC566286 IC566284  IC566283IC566285



Note that Blue and Green are still both arrows, and are still going to be a problem for some percentage of the population.

Not everyone has to use System Center Configuration Manager, but this problem shows up in other applications. I asked someone close to me who deals with this everyday:

“Yes, but you cannot prevent other people from displaying bad Powerpoints and expecting you to make sense of them. I got to where (at a multinational Fortune 100 company) I would stop the speaker and ask him to identify each line on the graph or arrow on the picture.”

If you make a multivariate graph (multiple lines) in Excel, the color choices are bad (and cannot be easily changed). So you get three or four lines on the graph and cannot match lines to a key. One trick is to use big symbols at the data points (plus, square, circle, star) and in the key. Another is to force a color out by setting its values to all zeros, and adding another line in the next successive color, which doesn’t work well since all the colors are similar anyway.

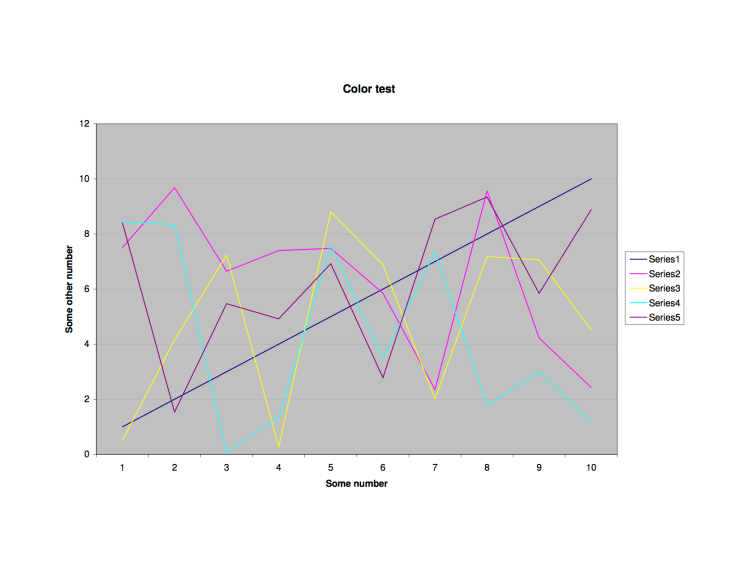

Color test

Color test in Excel

The only color I can reliably distinguish is series 3, yellow. There are two dark blue ones which are distinct from all the others but not from each other. And people at (a multinational Fortune 100 company) did this all the time.

Color test in 1-2-3

Color test in Lotus 1-2-3

Then, just for fun, I dumped the same data into Lotus 1-2-3. Not only were the default colors MUCH better, but by default the symbols were turned ON, not OFF.
So how do people with these problems get on in the world when traffic lights look similar?
traffic light
Mostly, by relying on the position of the light displayed. Designers should consider all the tools at their disposal, color, size, position, and shape to help communicate that “these things mean very different things.”
There are all kinds of accessibility concerns to take into account beyond things like sight and hearing impairment, which most people read as blindness and deafness. It’s important to remember that it’s a continuum and there’s more that can be done than just addressing those two more easily-understood conditions.
